Multi-threading in Spring

Thread Creation​

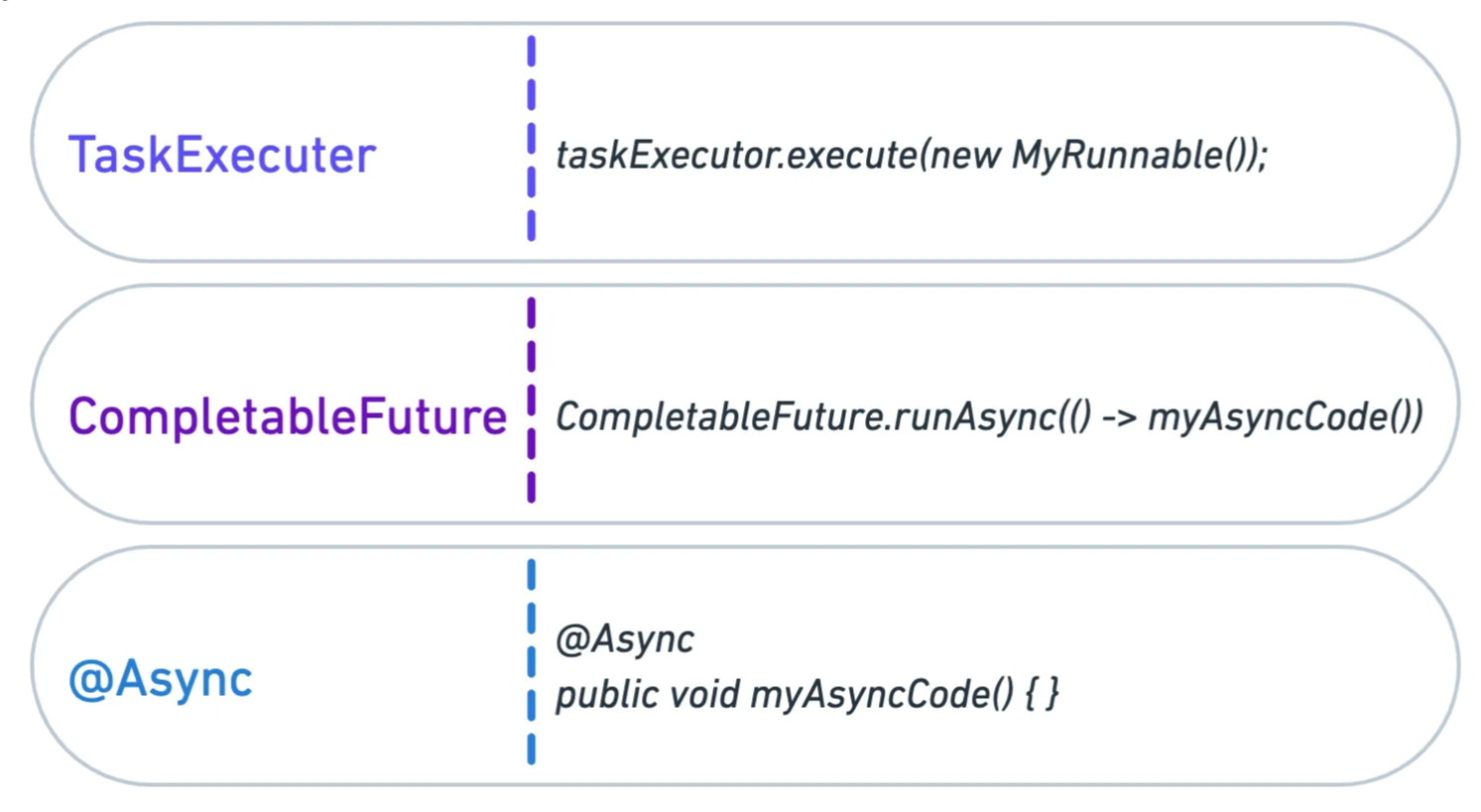

  1. Spring use org.springframework.core.task.TaskExecutor to create and manage threads.
  2. Use ThreadLocal for thread-specific data to avoid shared state conflicts.
@Bean(name = "apiTaskExecutor")
public TaskExecutor taskExecutor() {
    ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
    executor.setCorePoolSize(8); // Base number of threads
    executor.setMaxPoolSize(16); // Maximum threads allowed
    executor.setQueueCapacity(100); // Task queue size
    executor.setThreadNamePrefix("AsyncThread-");
    executor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
    executor.setTaskDecorator(runnable -> {
        String userId = userContext.get();
        return () -> {
            try {
                userContext.set(userId);
                runnable.run();
            } finally {
                userContext.remove();
            }
        };
    });
    executor.initialize();
    return executor;
}

private final ThreadLocal<String> userContext = new ThreadLocal<>();
userContext.set(userId);
userContext.get();
userContext.remove();

Thread Management​

  1. Create distinct thread pools for different types of tasks.
    • One pool for database operations, another for external API calls.
  2. Use CompletableFuture for asynchronous tasks.
    @Autowired
    @Qualifier("apiTaskExecutor")
    private TaskExecutor apiTaskExecutor;

    public CompletableFuture<String> fetchDataAsync(String url) {
        return CompletableFuture.supplyAsync(() -> {
            // Simulate external API call
            return callExternalApi(url);
        }, apiTaskExecutor);
    }

Asynchronous Tasks​

  1. Asynchronous processing is ideal for long-running or I/O-bound tasks (e.g. calling external APIs)
  2. Use @Transactional in async methods for database operations.
    @Async("dbTaskExecutor")
    @Transactional
    public CompletableFuture<Void> saveDataAsync(Data data) {
        dataRepository.save(data);
        return CompletableFuture.completedFuture(null);
    }

Locking​

  1. Use synchronized or ReentrantLock.

    public synchronized void updateSharedResource() {
        // Critical section
    }

    private final ReentrantLock lock = new ReentrantLock();

    public void updateResource() {
        lock.lock();
        try {
            // Critical section
        } finally {
            lock.unlock();
        }
    }

  2. Use ConcurrentHashMap, CopyOnWriteArrayList, or BlockingQueue for simple shared stage.

  3. Use optimistic locking with @Version in JPA.

    @Entity
    public class Product {
        @Id
        private Long id;
        @Version
        private Long version;
        // Other fields
    }

  4. Use pessimistic locking with LockModeType.

    @Query("SELECT p FROM Product p WHERE p.id = :id")
    @Lock(LockModeType.PESSIMISTIC_WRITE)
    Product lockProduct(@Param("id") Long id);

  5. Use Redis to implement distributed locks with INCR, EXPIRE, and DEL

Thread Local​

  • When a thread terminates, its ThreadLocalMap is also destroyed. However, the ThreadLocal object itself is not immediately garbage collected until there are no other references to it.
  • Therefore, when using ThreadLocal, you need to be cautious. If the remove() method is not explicitly called, or if the ThreadLocal variables are not properly cleaned up when the thread ends, it may lead to memory leaks. This is because the ThreadLocalMap will continue to hold references to the ThreadLocal variables, even if they are no longer referenced elsewhere.

TaskDecorator​

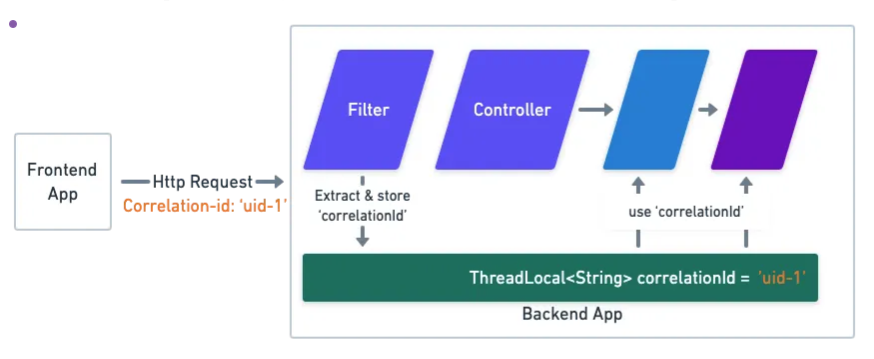

The 'correlation-id' Challenge​
